Conformal Cooling Before & After: 13 Projects, Real Production Numbers

Cycle time reduction claims of "up to 70%" are common in conformal cooling marketing. Factory data is rarer. This page documents 13 production mold projects where we replaced conventional straight-drilled cooling circuits with 3D-printed conformal cooling inserts. Every number below comes from Moldflow simulation validated by actual production runs — not from test coupons or laboratory conditions.

The applications span automotive components, cosmetics packaging, FMCG closures, consumer electronics, home appliances, and medical devices. Parts range from 6-second cycle times (cosmetics cap) to 100-second cycle times (spirits bottle cap). The pattern is consistent: conformal cooling delivers meaningful cycle time reduction in every application, with the largest gains where conventional drilling cannot reach — deep cores, thin-wall features, and geometries with no straight-line access.

Each project follows the same format: the problem with conventional cooling, the conformal solution, and the measured production results. Where available, Moldflow simulation screenshots and insert photos are included.

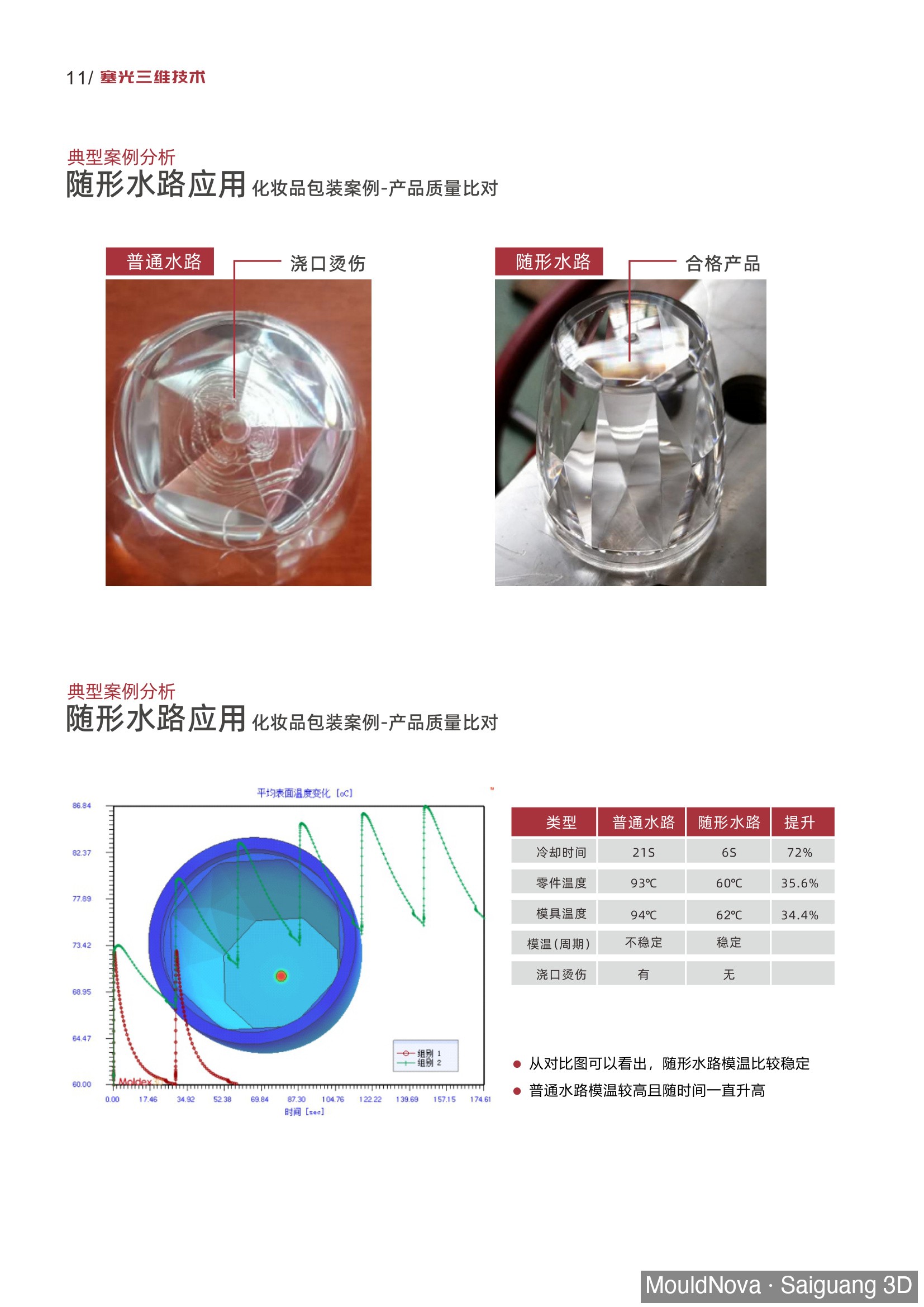

Case 1: Cosmetics Round Cap — 72% Cycle Time Reduction

Case 01 Cosmetics Packaging

Round Cosmetics Cap (Transparent PETG)

Problem: The cap's curved geometry concentrated heat near the gate. Conventional straight-drilled channels could not reach the critical zone. Result: gate burning on every shot, surface cloudiness on the PETG material, and a 21-second cooling phase that dominated cycle time.

Before: Gate Burning

After: Accepted Product

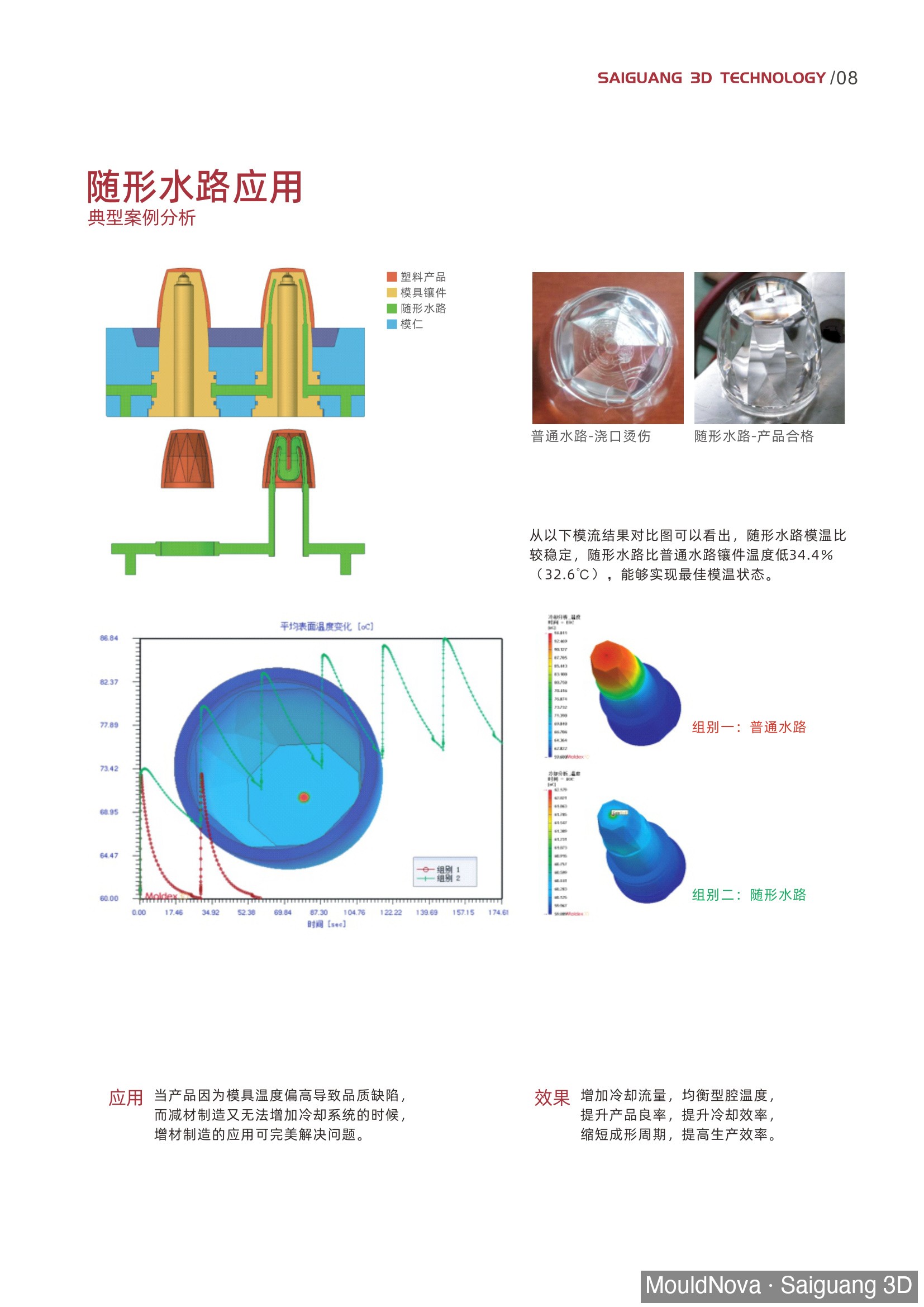

Moldflow: Conventional — 21.71s

Moldflow: Conformal — 6.57s

Metric	Conventional Cooling	Conformal Cooling	Improvement
Cooling time	21 s	6 s	−72%
Part temperature at ejection	93 °C	60 °C	−35.6%
Mold insert temperature	94 °C	62 °C	−34.4%
Mold temperature stability	Unstable (rising)	Stable	Eliminated drift
Gate burning defect	Present	None	Eliminated

−72%

Cooling time

−35.6%

Part ejection temp

−34.4%

Mold insert temp

Zero

Gate burn defects

Solution approach: Conformal channels were routed to follow the curved cap geometry, placing the cooling circuit 2–3 mm from the mold surface throughout. The conventional mold could not access this zone at all — the closest drilled channel was 12 mm from the hottest area. The 72% cooling time reduction is the largest in this dataset, driven by the geometry mismatch that made conventional cooling particularly ineffective.

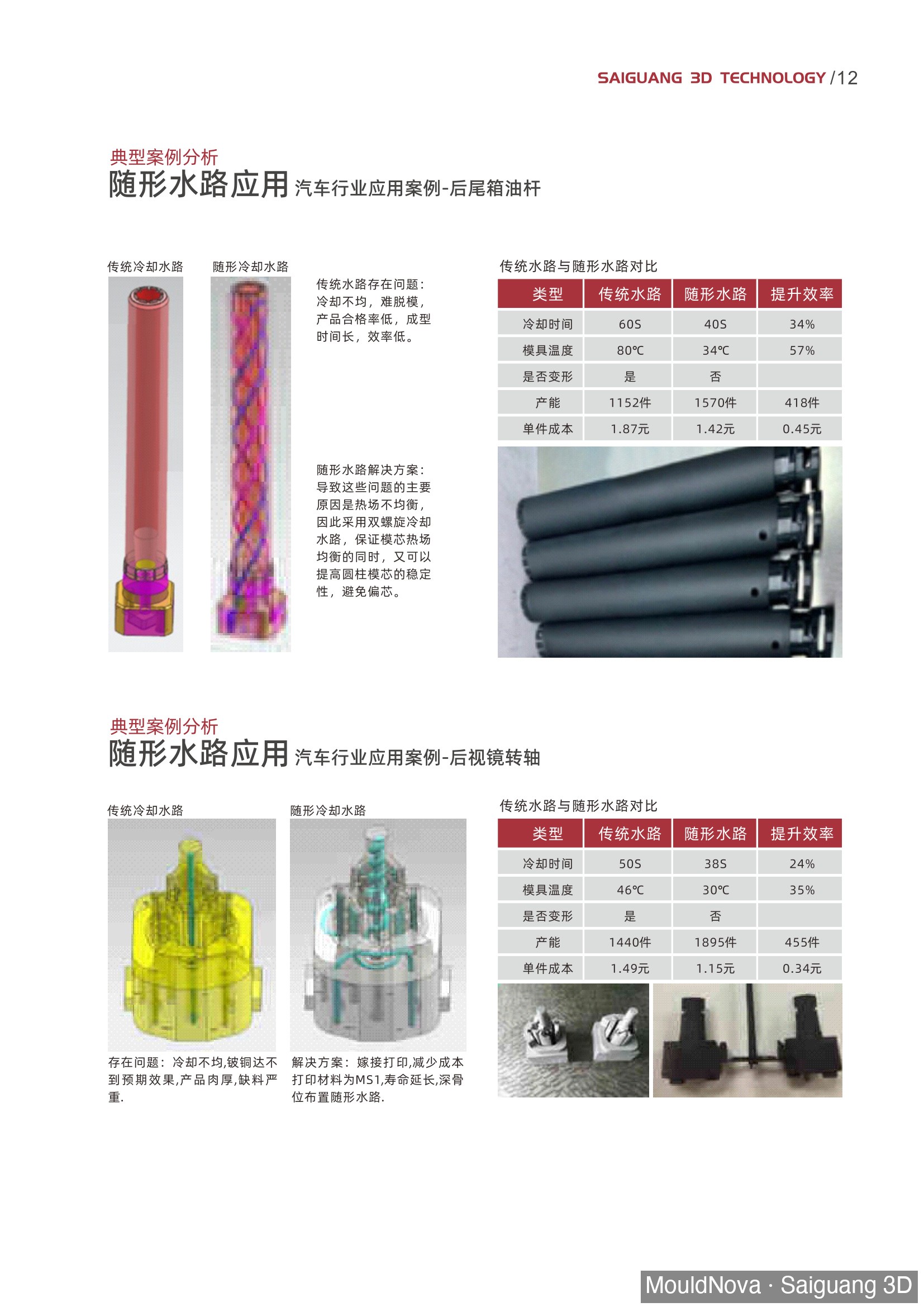

Case 2: Automotive Trunk Oil Rod — −34% Cycle Time, −57% Mold Temperature

Case 02 Automotive

Trunk Oil Rod (Cylindrical Deep Core)

Problem: The rod's long cylindrical geometry required a deep slender core. Conventional cooling could not reach the tip; the mold ran at 80 °C, causing warpage and preventing ejection without distortion. Cycle time was 60 seconds — mostly cooling wait time. Output was 1,152 pieces per shift.

Before: Conventional Channels

After: Double-Helix Conformal

Before: Warped Parts

After: Straight, No Warpage

Metric	Conventional	Conformal	Improvement
Cooling time	60 s	40 s	−34%
Mold temperature	80 °C	34 °C	−57%
Part warpage	Yes	No	Eliminated
Output per shift	1,152 pcs	1,570 pcs	+418 pcs (+36%)
Unit cost	¥1.87 / pc	¥1.42 / pc	−¥0.45 / pc

−34%

Cycle time

−57%

Mold temperature

+418

Parts per shift

−¥0.45

Per-part cost saving

Solution: A double-helix conformal cooling circuit was printed around the cylindrical core. The helix geometry balances heat field symmetry around the core axis, eliminating the thermal gradient that caused bending warpage. The 57% mold temperature reduction is the highest in this dataset — enabled by the helical channel placing coolant within 2 mm of the mold surface around the full core circumference.

Case 3: Automotive Rearview Mirror Pivot — +455 pcs/Shift

Case 03 Automotive

Rearview Mirror Pivot (MS1 Steel, Deep Ribs)

Problem: Deep rib features on the pivot body caused thick section sink marks and excessive flash at the part surface. Conventional cooling (pin-and-bushing) could not reach deep rib locations. Mold temperature was 46 °C but uneven, causing localized hot zones in the ribs.

Before: Pin-and-Bushing Cooling

After: Deep-Rib Conformal Channels

Metric	Conventional	Conformal	Improvement
Cooling time	50 s	38 s	−24%
Mold temperature	46 °C	30 °C	−35%
Part warpage	Yes	No	Eliminated
Output per shift	1,440 pcs	1,895 pcs	+455 pcs (+32%)
Unit cost	¥1.49 / pc	¥1.15 / pc	−¥0.34 / pc

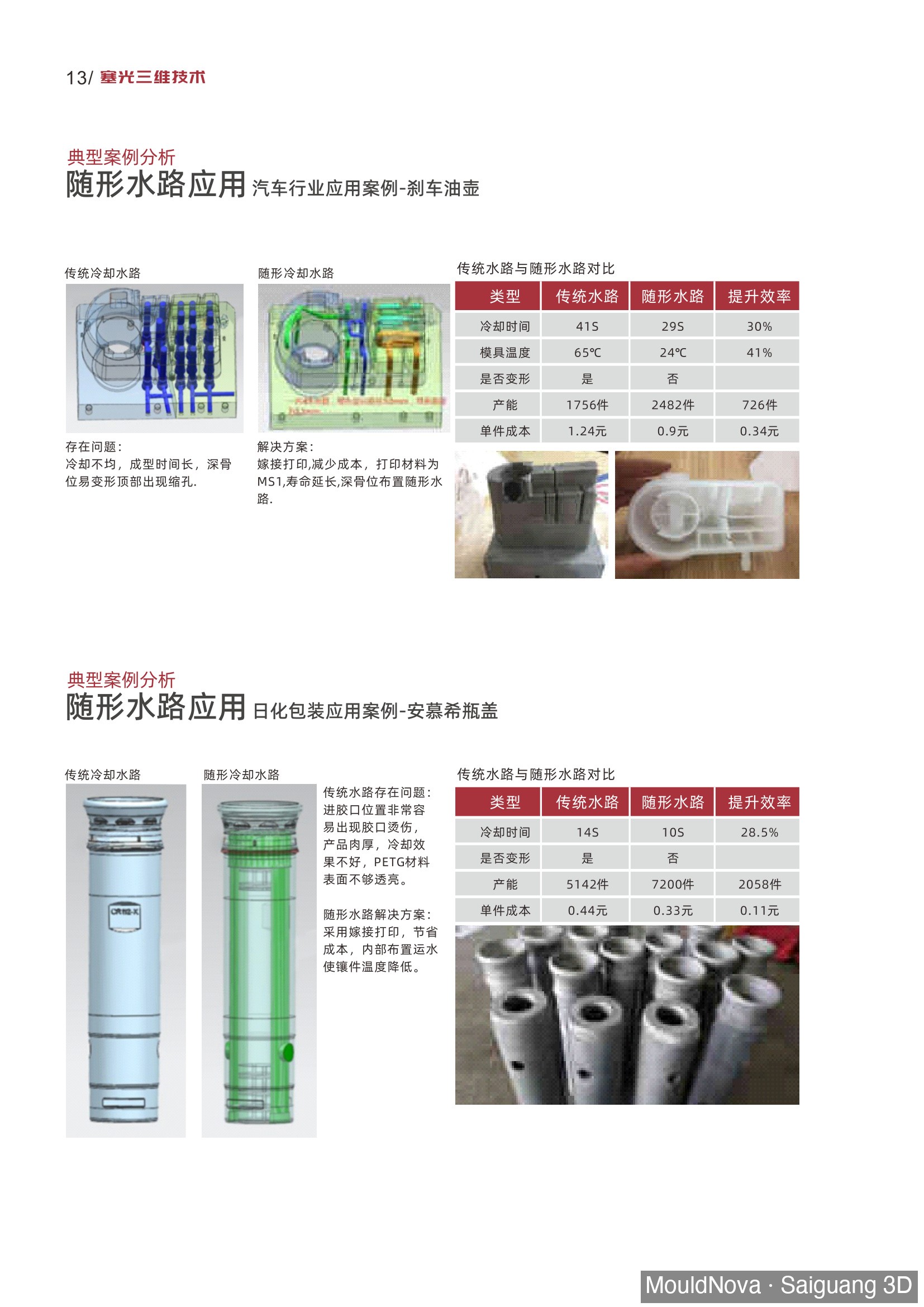

Case 4: Automotive Brake Fluid Reservoir — −41% Mold Temperature

Case 04 Automotive

Brake Fluid Reservoir (MS1, Deep Boss Features)

Problem: Uneven cooling caused deep boss features to shrink and sink. Cycle time was 41 seconds. The mold ran hot (65 °C) with no ability to place channels near the boss roots using conventional drilling.

Before: Conventional

After: Conformal into Boss Zones

Metric	Conventional	Conformal	Improvement
Cooling time	41 s	29 s	−30%
Mold temperature	65 °C	24 °C	−41°C (−63%)
Part warpage	Yes	No	Eliminated
Output per shift	1,756 pcs	2,482 pcs	+726 pcs (+41%)
Unit cost	¥1.24 / pc	¥0.90 / pc	−¥0.34 / pc

Case 5: FMCG Yogurt Bottle Cap — +2,058 pcs/Shift

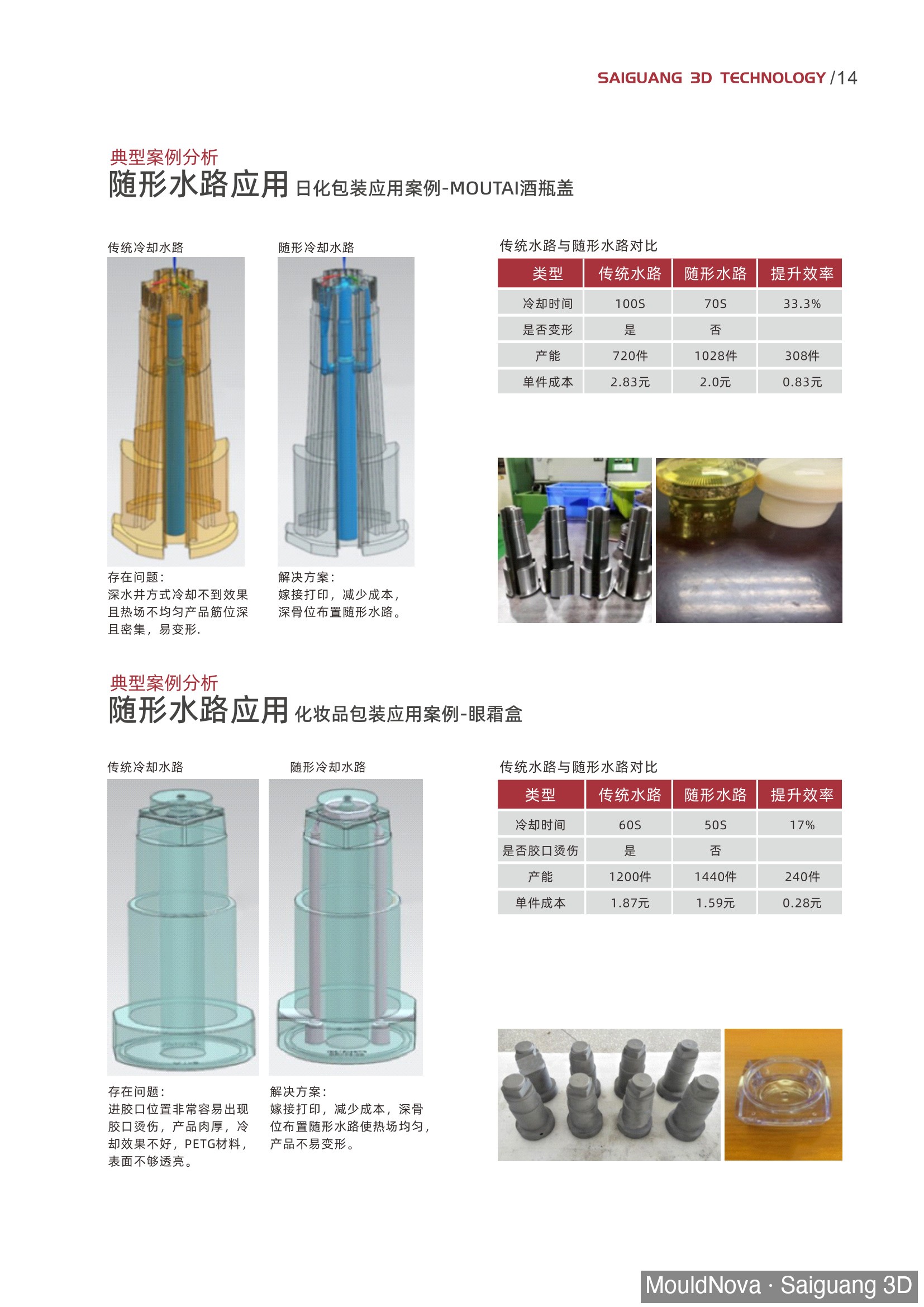

Case 6: Maotai Spirit Bottle Cap — +308 pcs/Shift, −¥0.83/pc

Case 06 FMCG Packaging

Maotai Spirit Bottle Cap (Tall, Dense Geometry)

Problem: The tall cap geometry with dense ribs could only be cooled by a central baffle — unable to reach the outer rib walls. The mold ran hot and warped the cap body. 100-second cycle time. Only 720 pieces per shift.

Before: Central Baffle Only

After: Full-Coverage Conformal

Metric	Conventional	Conformal	Improvement
Cooling time	100 s	70 s	−33%
Part warpage	Yes	No	Eliminated
Output per shift	720 pcs	1,028 pcs	+308 pcs (+43%)
Unit cost	¥2.83 / pc	¥2.00 / pc	−¥0.83 / pc

Case 7: Eye Cream Box — Gate Burn Eliminated

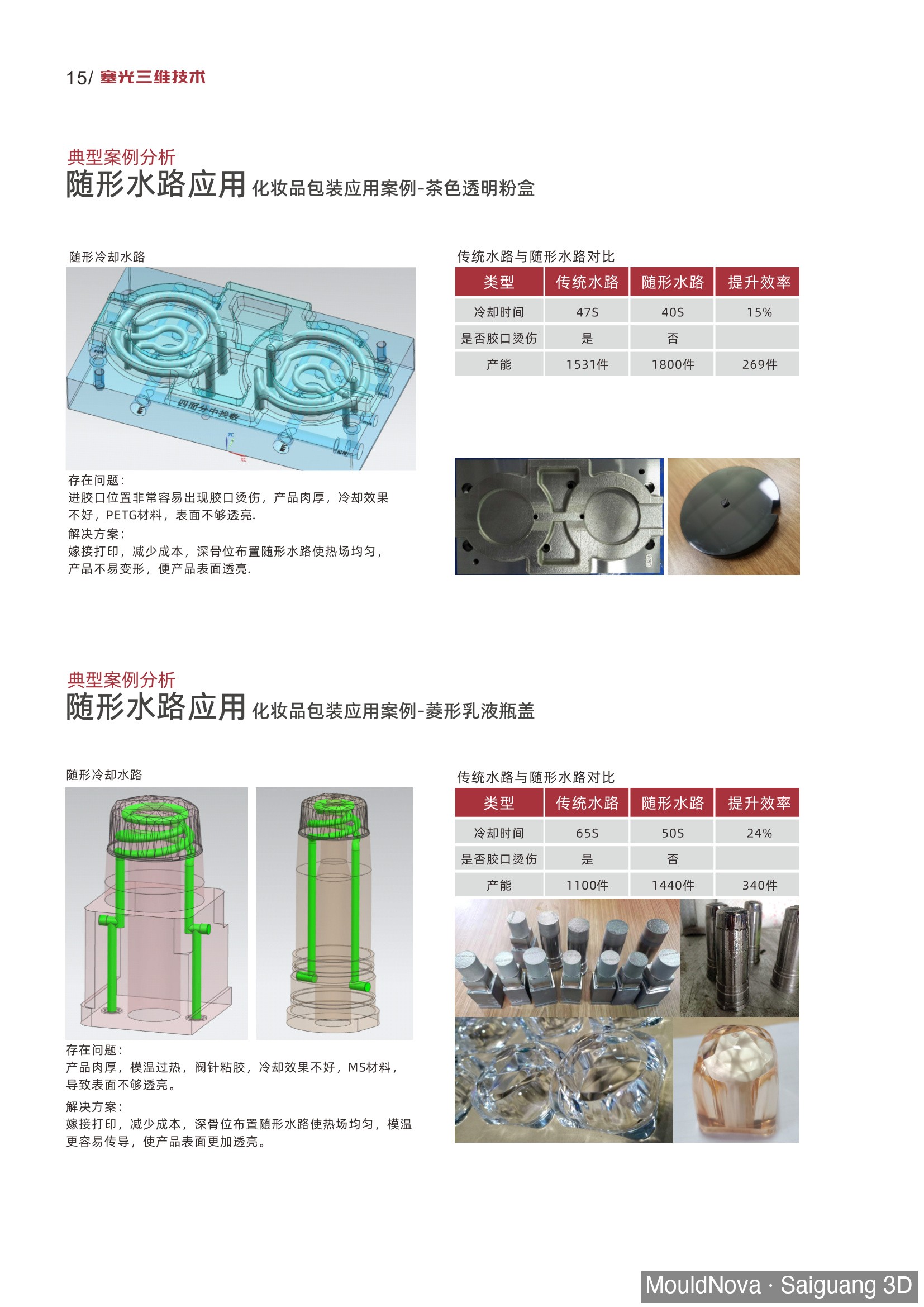

Case 8: Transparent Compact (Powder Box) — Surface Clarity Restored

Case 08 Cosmetics Packaging

Amber Transparent Compact (PETG, Dual Cavity)

Problem: Dual-cavity compact mold with PETG resin. Gate locations on the flat face caused burn marks and surface haze. The flat geometry looks simple but the large projected area required even cooling across the full surface — impossible with straight drilled channels.

Conformal Channel Design

After: Clear Surface, No Burn

Metric	Conventional	Conformal	Improvement
Cooling time	47 s	40 s	−15%
Gate burn defect	Yes	No	Eliminated
Output per shift	1,531 pcs	1,800 pcs	+269 pcs (+18%)

Case 9: Diamond Lotion Bottle Cap — Surface Transparency Achieved

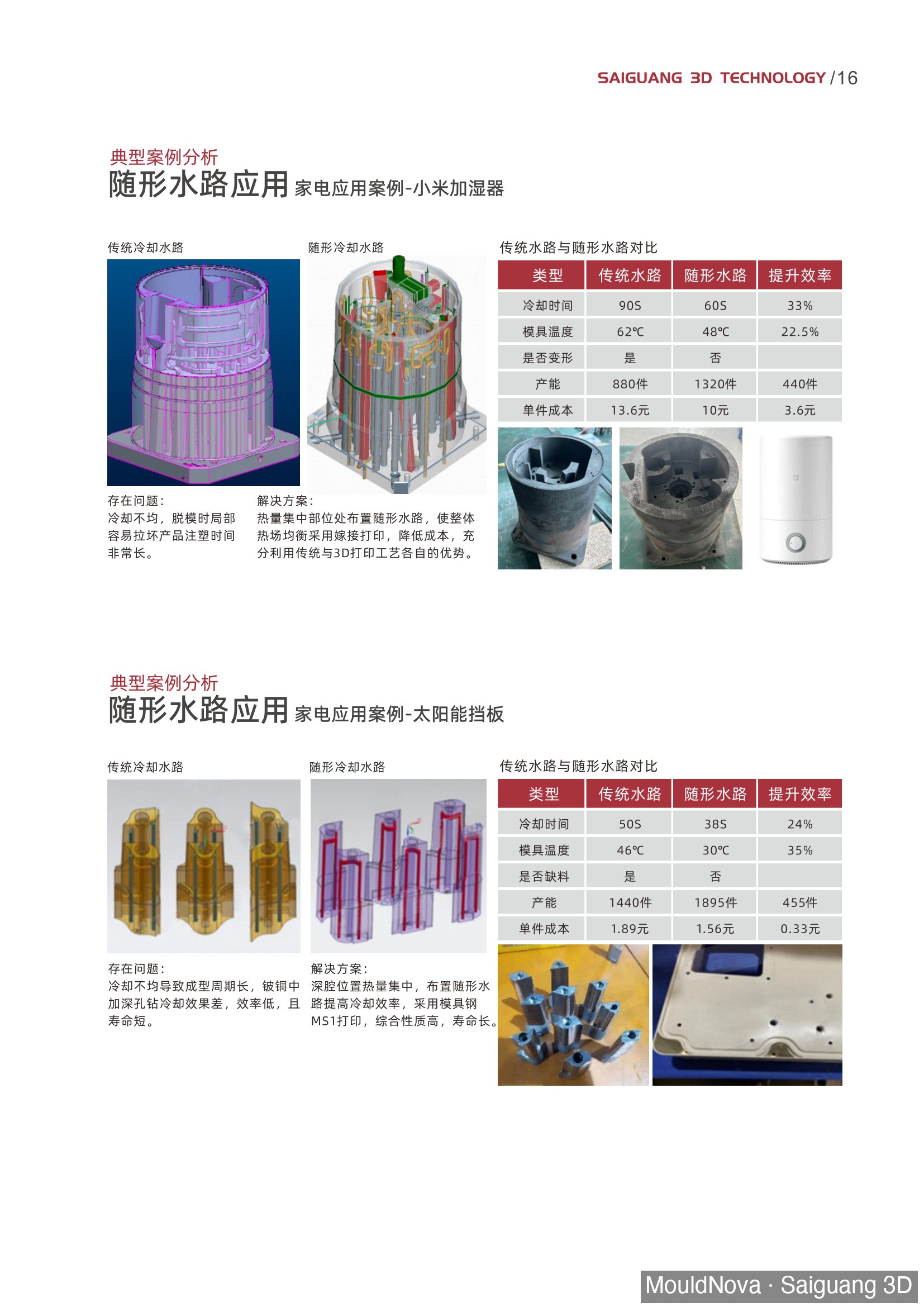

Case 10: Xiaomi Humidifier — −33% Cycle Time, −¥3.6/pc

Case 10 Home Appliance

Xiaomi Humidifier Body (Large Cylindrical Part)

Problem: The humidifier body is a large cylindrical part. Conventional cooling caused hot zones near the top edge during demolding, tearing the part. Injection time was very long. Hybrid approach: conformal cooling placed at the thermally critical mid-body zone, combined with conventional channels elsewhere.

Before: Conventional

After: Hybrid Conformal

Xiaomi Humidifier + Insert

Finished Product

Metric	Conventional	Conformal	Improvement
Cooling time	90 s	60 s	−33%
Mold temperature	62 °C	48 °C	−22.5%
Part warpage	Yes	No	Eliminated
Output per shift	880 pcs	1,320 pcs	+440 pcs (+50%)
Unit cost	¥13.6 / pc	¥10.0 / pc	−¥3.6 / pc

−¥3.6

Per-part saving (highest in dataset)

+50%

Output per shift

−33%

Cycle time

Case 11: Solar Panel Shield — −24% Cycle Time, Shrinkage Eliminated

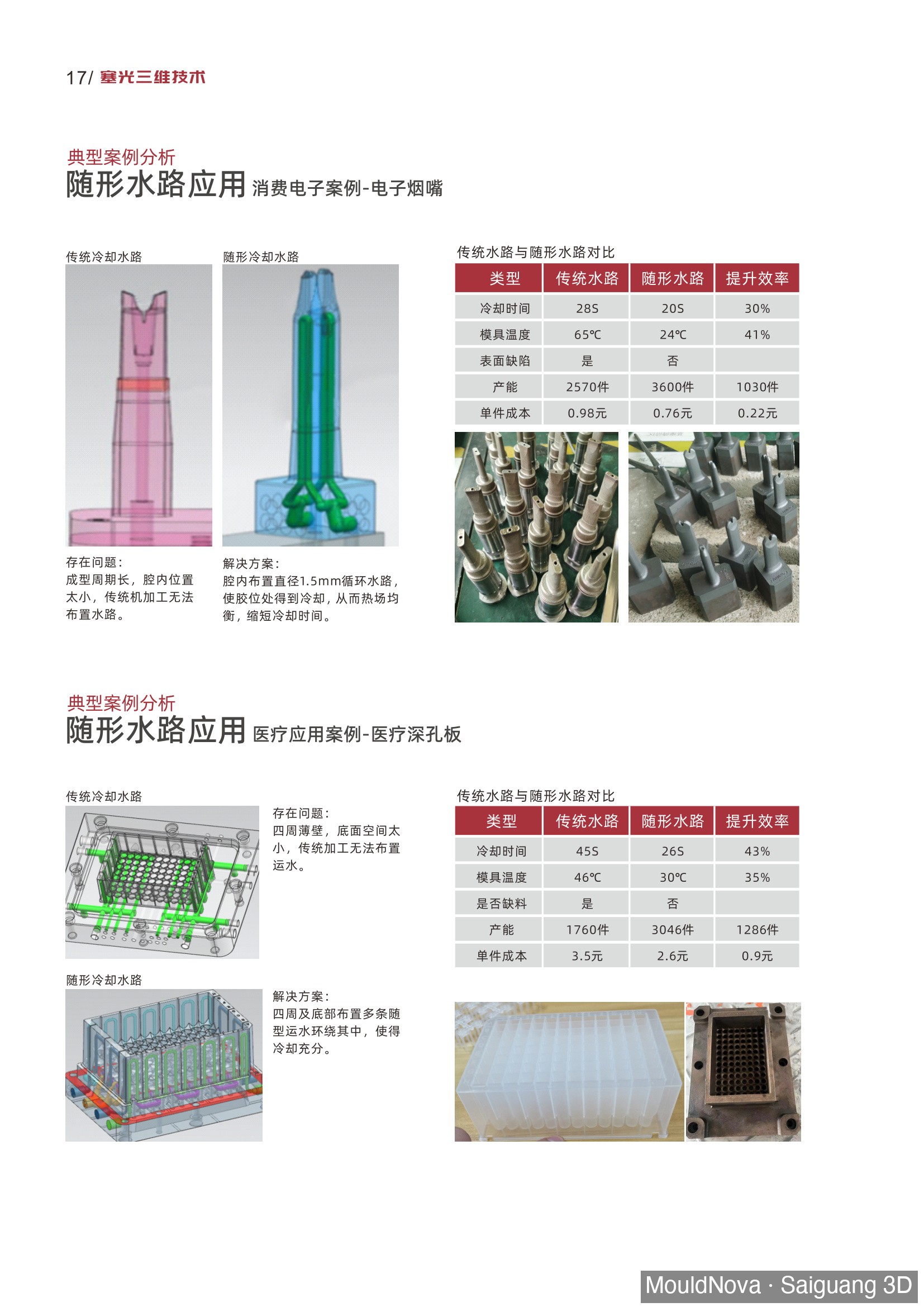

Case 12: E-Cigarette Tip — Conventional Machining Impossible

Case 12 Consumer Electronics

E-Cigarette Mouthpiece (1.5mm Micro Channels)

Problem: The mouthpiece cavity was too small for conventional channel drilling. No coolant could reach the cavity zone at all — the mold ran at 65 °C with surface defects on every part. Conventional machining simply cannot place a coolant circuit inside this geometry.

Before: No Cooling Possible

After: 1.5mm Micro Channels

Printed Inserts + Products

Defect-Free Products

Metric	Conventional	Conformal	Improvement
Cooling time	28 s	20 s	−30%
Mold temperature	65 °C	24 °C	−41°C (−63%)
Surface defects	Yes	No	Eliminated
Output per shift	2,570 pcs	3,600 pcs	+1,030 pcs (+40%)
Unit cost	¥0.98 / pc	¥0.76 / pc	−¥0.22 / pc

This case illustrates a category where conformal cooling isn't just better — it's the only option. No conventional drilling process can place a coolant circuit inside a cavity this size. The 3D-printed insert with 1.5mm diameter channels is the enabling technology that makes this geometry manufacturable at production volumes.

Case 13: Medical Deep-Well Plate — −43% Cycle Time, +1,286 pcs/Shift

Case 13 Medical Devices

Medical Deep-Well Plate (Thin Walls, Confined Geometry)

Problem: The deep-well plate has thin perimeter walls surrounding a dense array of deep wells. The floor and perimeter bottom space was too confined for conventional channel placement. Uneven cooling caused dimensional variation between wells — unacceptable for laboratory applications requiring consistent well geometry.

Before: No Cooling at Critical Zones

After: Full-Perimeter Conformal

Product + Insert Photos

Finished Medical Plate

Metric	Conventional	Conformal	Improvement
Cooling time	45 s	26 s	−43%
Mold temperature	46 °C	30 °C	−35%
Shrinkage defects	Yes	No	Eliminated
Output per shift	1,760 pcs	3,046 pcs	+1,286 pcs (+73%)
Unit cost	¥3.5 / pc	¥2.6 / pc	−¥0.9 / pc

+73%

Output per shift (highest gain)

−43%

Cycle time

+1,286

Parts per shift

−¥0.9

Per-part saving

All 13 Projects: Summary Table

Every project in this dataset delivered meaningful cycle time reduction. The range is 15–72%, with the median around 30%. Larger reductions correlate with geometries where conventional cooling had the most difficulty — deep cores, thin cavities, curved surfaces, and features too small for conventional drilling.

What These Results Have in Common

• Warpage was eliminated in every case where it was a problem — not reduced, eliminated. Conformal cooling removes the temperature gradient that causes differential shrinkage.
• Gate burning was eliminated in every cosmetics/packaging case — the gate zone is consistently the hottest area that conventional drilling cannot reach.
• The 15% minimum case (Compact) was geometry-limited — the flat part had the best conventional cooling of all cases. Even so, conformal delivered measurable improvement.
• The 72% maximum case (Round Cap) had the worst conventional cooling — the curved geometry made conventional channels completely ineffective at the critical zone.
